Art

When forming a superposition of pure tones, we had a choice for each tones magnitude & relative phase. The former were chosen to optimize for homogeneous trap intensities, but the latter were chosen to correct a more subtle issue. When a multitude of tones are superimposed upon each other, inevitably many of those tones will constructively align, forming a massive amplitude peak. This may not necessarily happen for various sets of relative phases.

For a given superposition, we consider the ratio: Mean Squared Amplitude over Peak Value. We optimize the relative phases to maximize this quantity. In the process of developing the method, we discovered a few intriguing structures & validated some hunches.

Hidden Beauty

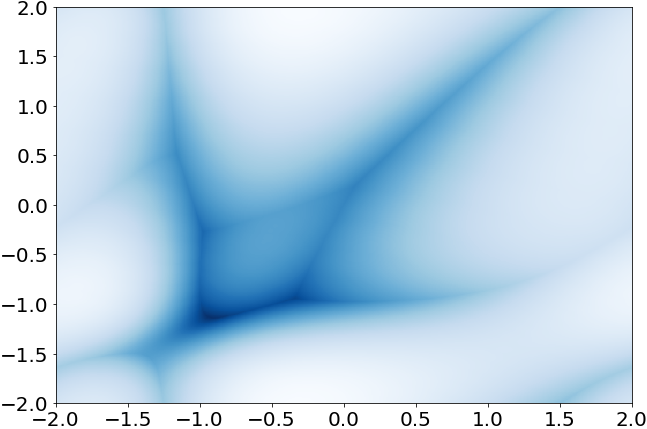

Here we have some rather gorgeous maps. Each map is associated with some superposition of pure tones. The axes represent relative phases of 2 particular pure tones in the superposition, while the pixel intensity represents the aforementioned ratio.

Trends in Chances

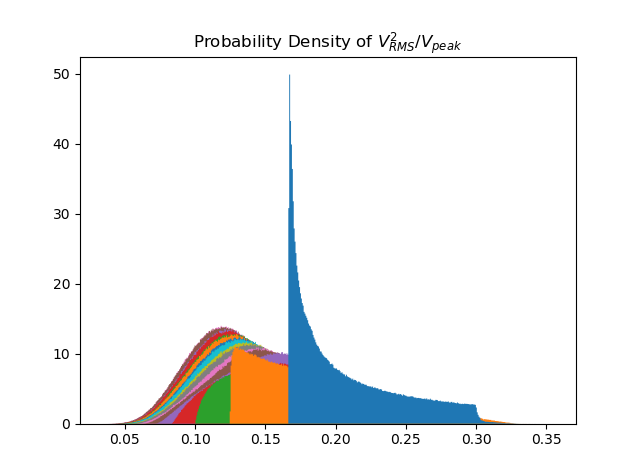

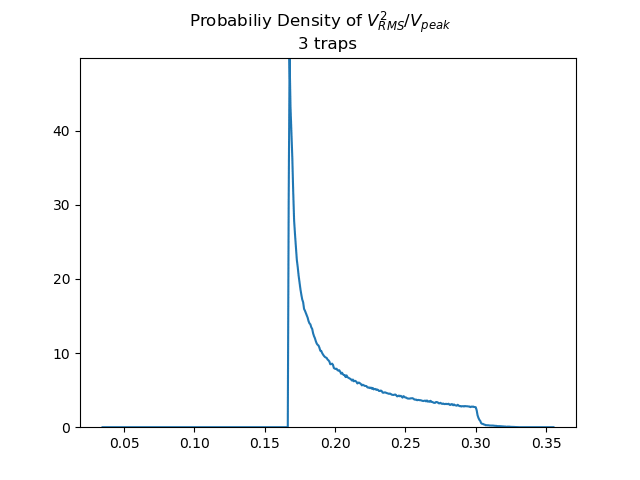

We had a feeling that the maximum achievable ratio would decrease with number of tones. The below 2 graphs show that your chances of achieving a higher ratio decreases with number of tones.

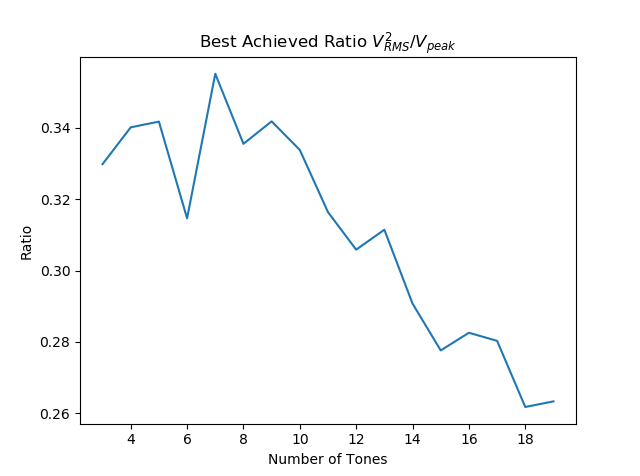

Although that is not satisfactory. Our method of optimization is to randomly sample the space of relative phases, holding onto phases that achieve the best ratio. All we have shown is that you are less likely to find a better ratio for a greater number of tones. Below is the best achieved ratio vs. number of tones; although one must keep in mind that we randomly sampled each case the same number of times. It is possible that we are not achieving even close to the best for the cases with many tones, just that the chances of achieving a high ratio is *very unlikely
